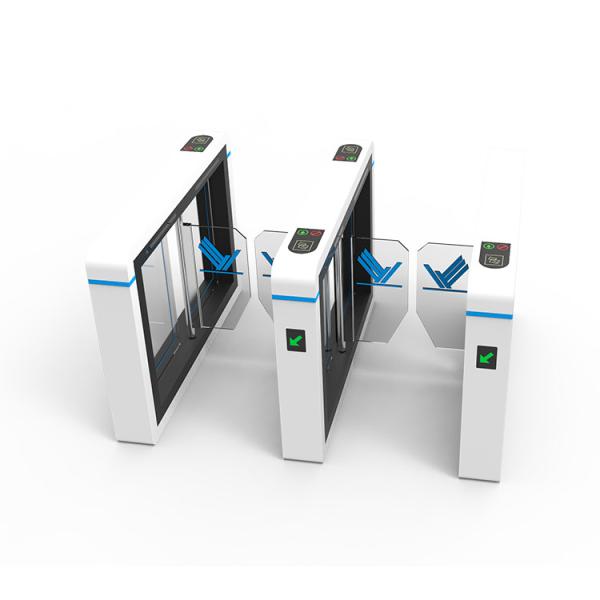

SPCC White Sliding Barrier Gate Single Directional / Bi Directional Turnstile

  • 1
  • 2

Brand Name : HPT

Model Number : AG-HX35141802

Certification : CE; FCC; ISO

Place of Origin : China

Product name : Sliding Gate Turnstile

Dimension : 1400*180*1000mm

Type : Swing Barrier

Material : SPCC

Weight : single core 38kg/dual core 48 kg

Throughput Rate : 25~30p/m

Contact Now

AG-HX35141802 Wing Turnstile Gate White Color Turnstiles Speed Barriers

HPT AG-HX35141802 turnstile gate, your perfect solution for controlling and monitoring pedestrian traffic in various applications. The turnstile gate is equipped with advanced security features ensuring safety, security and ease of use. Its sleek and modern design is guaranteed to complement any environment, making it an ideal choice for high-security premises.

The turnstile is made of high-quality stainless steel that is resistant to corrosion, wear and tear, and heavy impact. With its robust structural design, it can withstand both indoor and outdoor environments.

This turnstile includes bi-directional swing arms that automatically open and close to allow entry or exit after the user presents an authorized credential. It also features multiple safety sensors and alarms, ensuring smooth operation while providing added safety and security.

The turnstile gate is user-friendly and can be integrated seamlessly with different access control systems, such as RFID, barcode, and fingerprint recognition. Its control unit is easy to operate, and its programming can be customized to match your specific needs.

The gate is designed for high-volume pedestrian traffic and is equipped with adjustable flow control technology to enable smooth operation. It is an ideal solution for airports, train stations, government buildings, banks, healthcare facilities, and other high-security premises.

With the gate, you can be assured of a reliable, efficient, and user-friendly solution for pedestrian control and monitoring. Its sleek and modern design combined with its superior technology makes the it the best choice for high-security and high-traffic locations.

SPCC White Sliding Barrier Gate Single Directional / Bi Directional Turnstile

Specification

Specification
Product Size 1400*180*1000mm
Material SPCC
Thickness 1.2mm
Passage Direction single directional/Bi-directional
Passage Width 600mm (≤800mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED

SPCC White Sliding Barrier Gate Single Directional / Bi Directional Turnstile

Functionality

1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.

2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.

3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.

4, The gate has a high-luminance LED accessibility indicator.

5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.

6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.

7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.

SPCC White Sliding Barrier Gate Single Directional / Bi Directional Turnstile

Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
